Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.

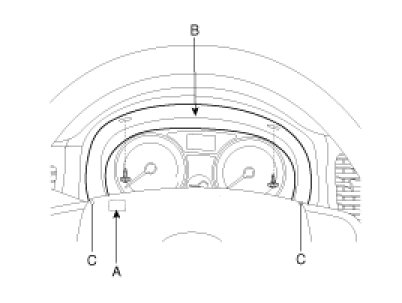

2. Remove the cluster facia panel (B) after disconnecting the connector of trip switch (A) and loosening the 2 screws take care of fixing clips(C).

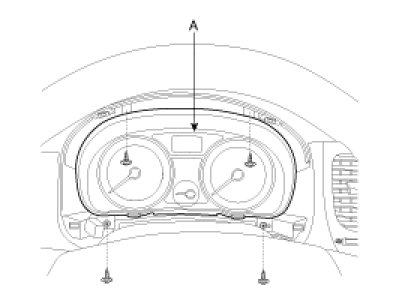

3. Pull out the cluster (A) from the housing after removing 4 screws.

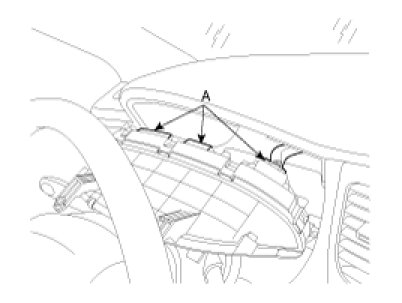

4. Disconnect the cluster connector (A) and then remove the cluster.




5. Installation is the reverse of removal.
