Radiator Cooling Fan Motor: Testing and Inspection

INSPECTION

COOLING FAN

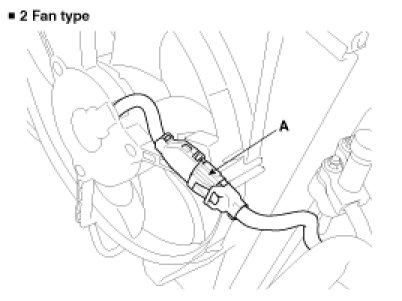

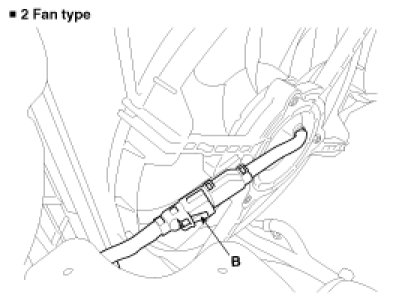

1. Disconnect the cooling fan motor connector.








2. Check that the radiator fan rotates when battery voltage is applied between (+) and (-) terminals.
