Home >> Kia >> 2009 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Remote Control, Audio - Stereo

Remote Control, Audio - Stereo

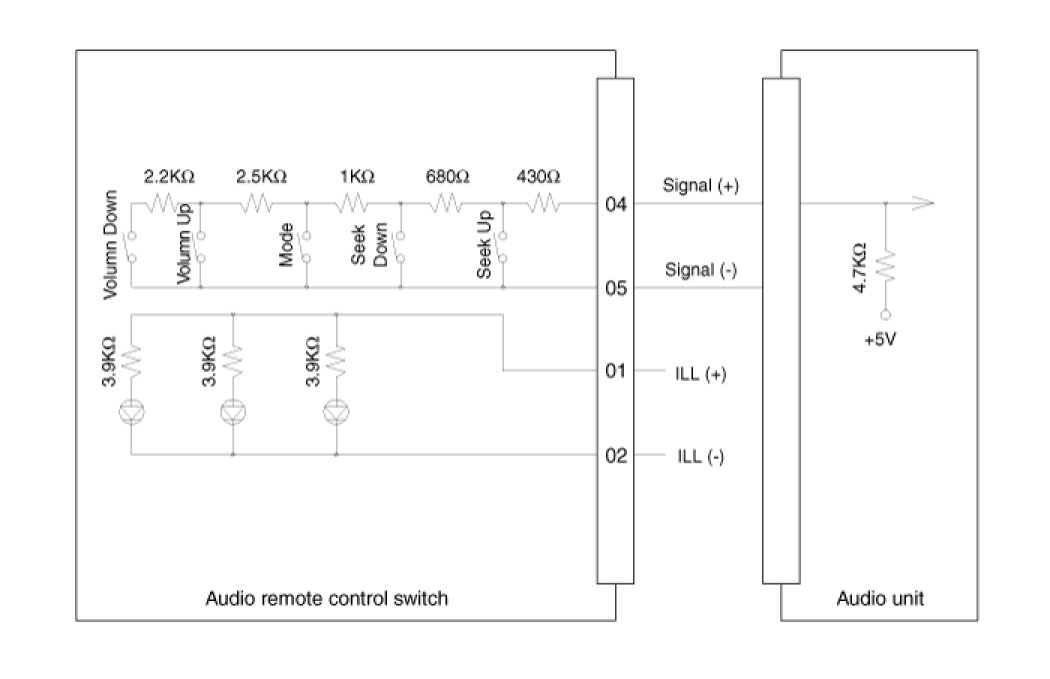

Circuit Diagram
