Keyless Entry and Burglar Alarm

INSPECTION

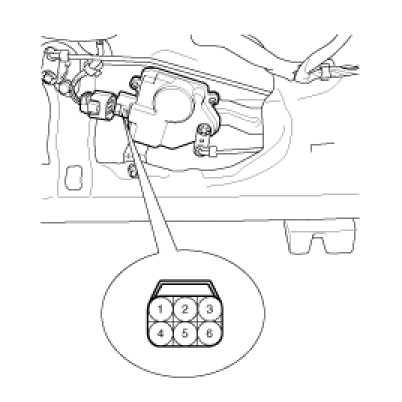

TAILGATE LOCK SWITCH (5DOORS)
1. Remove the tailgate trim panel.
2. Disconnect the 6P connector from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.
