Home >> Kia >> 2009 >> Rio L4-1.6L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Hood Switch / Sensor >> Locations

Hood Switch / Sensor: Locations

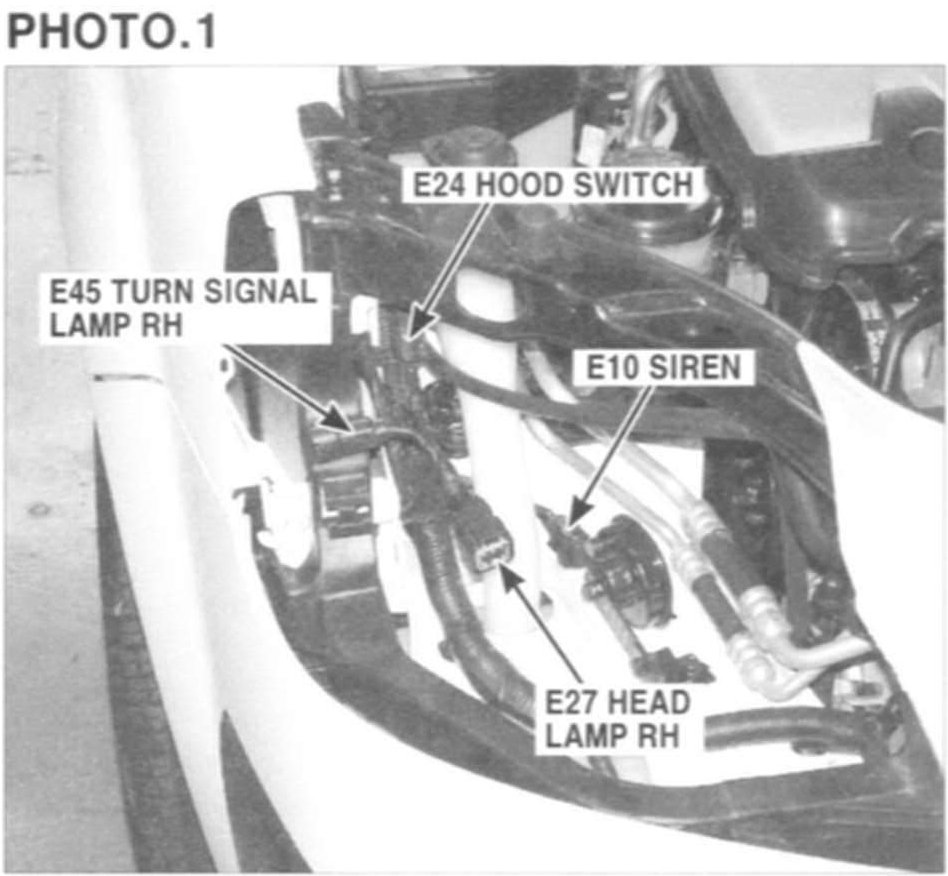

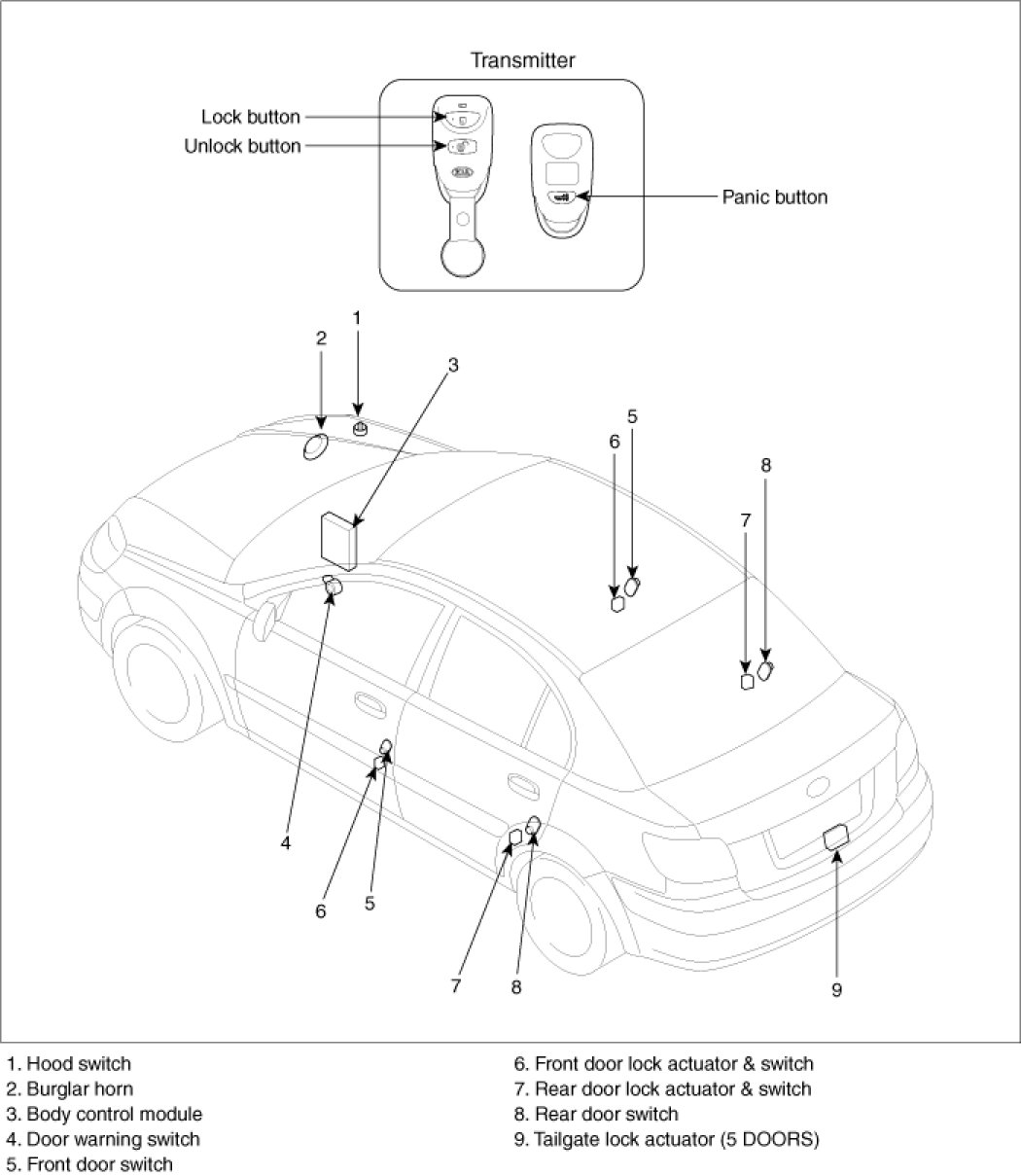

COMPONENT LOCATION
