Seat Cover: Service and Repair
REPLACEMENT
RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT

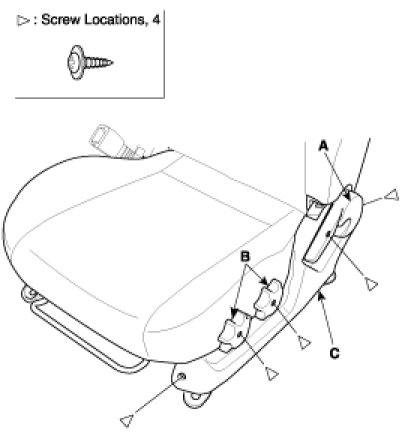

1. Remove the height adjuster knob (A) and recliner knob(B).

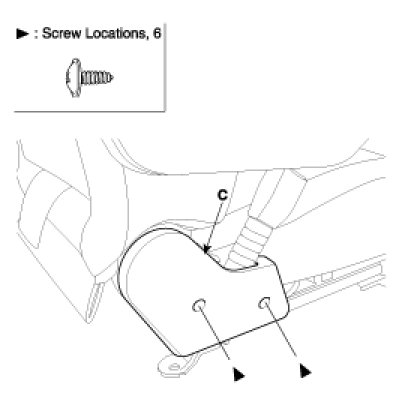

2. Loosen the recliner mounting screw and clip, then remove the recliner cover(C).
REPLACEMENT
RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT
1. Remove the height adjuster knob (A) and recliner knob(B).
2. Loosen the recliner mounting screw and clip, then remove the recliner cover(C).
