Sunroof / Moonroof Windguard: Service and Repair





REPLACEMENT

DEFLECTOR REPLACEMENT
1. Open the glass fully.

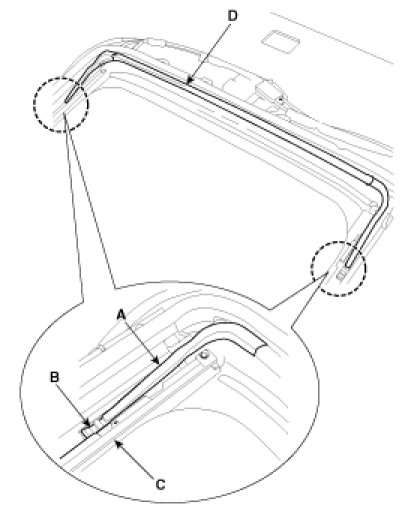

2. Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).




3. Installation is the reverse of removal.
