Sun Roof

REPLACEMENT

MOTOR REPLACEMENT
1. Remove the over head console.

NOTE:
- Confirm the position of guide whether it is closed or not when you remove the motor.

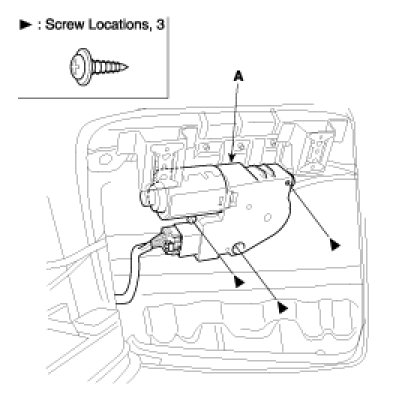

2. Disconnect the motor connector , remove the screws and then remove the motor (A).




3. Installation is the reverse of removal.
