Sun Roof Motor










REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. Disconnect the connector then remove the overhead console lamp assembly from the headliner.

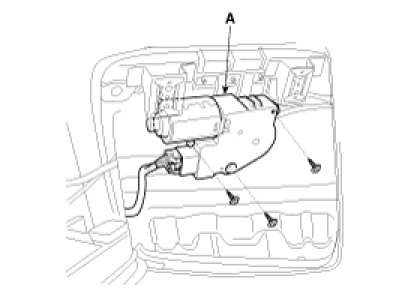

3. Remove the sunroof motor (A) after removing 3 screws and disconnect.




4. Installation is the reverse of removal.
