Glove Compartment: Service and Repair

REPLACEMENT

GLOVE BOX REPLACEMENT

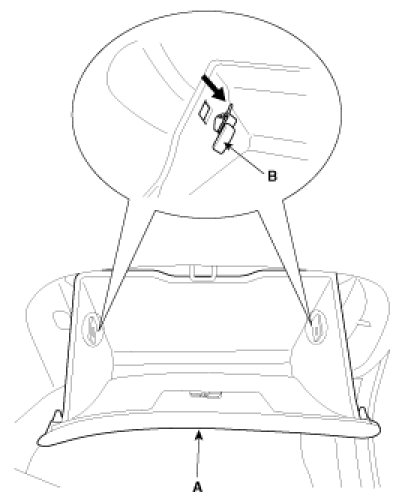

1. Disconnect the damper (B) from the glove box (A).




2. Remove the glove box(A).
3. Installation is the reverse of removal.
