Arm Rest: Service and Repair

REPLACEMENT

ARM REST REPLACEMENT
1. Remove the rear rear seat.

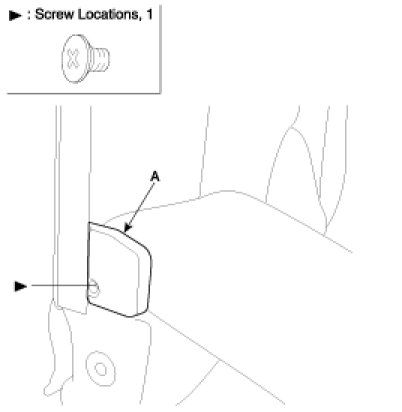

2. Remove the arm rest cover(A).

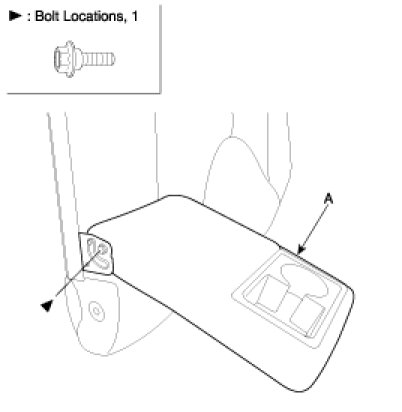

3. Loosening the arm rest mounting bolt, remove the arm rest(A).




4. Installation is the reverse of removal.
