Trunk / Liftgate: Service and Repair

REPLACEMENT

NOTE:
- When removing and installing the trunk lid, an assistant is necessary.
- Wear gloves to protect hands from injury.

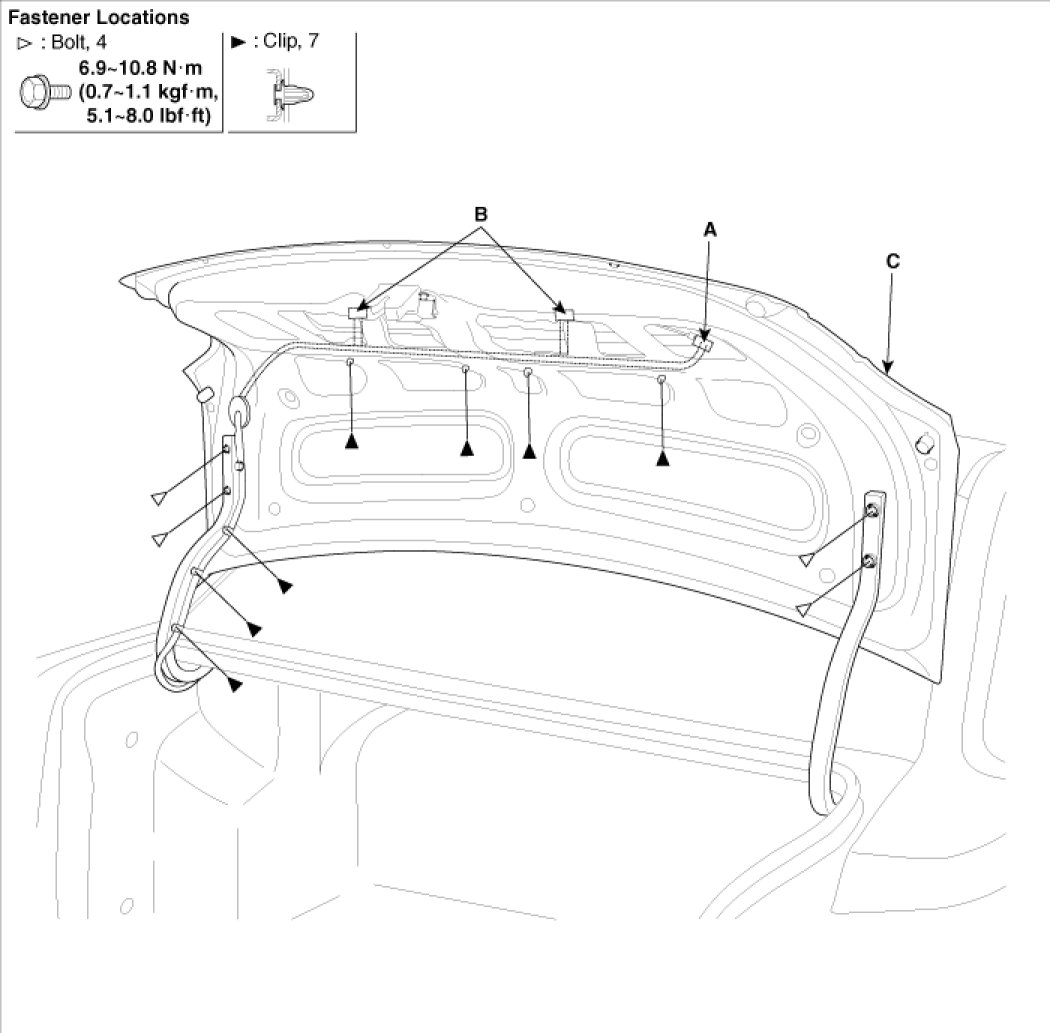

1. Disconnect the key holder connector (A) license plate lamp connector(B) then remove the wirering harness from trunk lid.
2. Loosen the trunk lid mounting bolt, then remove the trunk lid(C).
3. Installation is the reverse of removal.
