Hood Latch Release Cable: Service and Repair

REPLACEMENT

HOOD LATCH RELEASE CABLE REPLACEMENT
1. Remove the following items.
A. Hood latch.
B. Hood latch release handle.
C. Wheel guard.

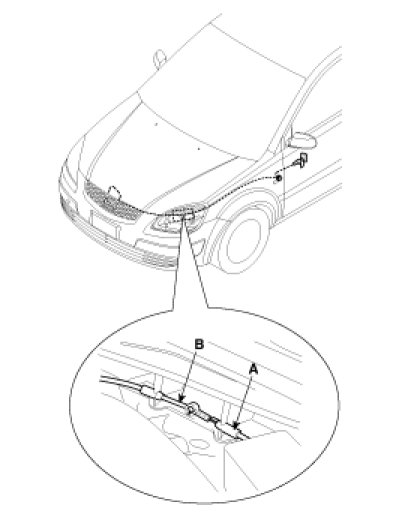

2. Remove the clip, latch cable(A) and then remove the release cable(B).

NOTE:
- Make sure the hood latch cable is connected.




3. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch cable is connected properly.
- Replace any damaged clips.
