Hood Insulator / Pad: Service and Repair

REPLACEMENT

HOOD INSULATOR REPLACEMENT

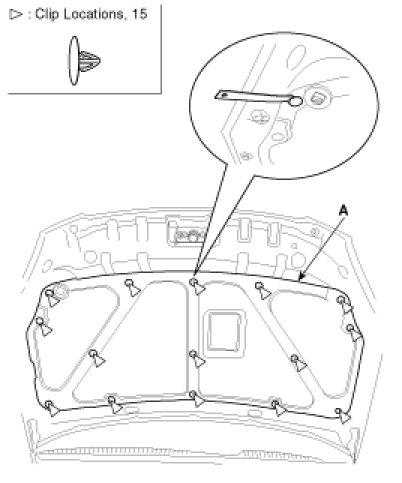

1. Using a clip remover, detach the clips, and remove the hood insulator (A).

NOTE:
- Take care not to scratch the hood panel.




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
