Rear Door Panel: Service and Repair

REPLACEMENT

REAR DOOR TRIM REPLACEMENT

NOTE:
- Take care not to scratch the door trim and other parts.
- Put on gloves to protect your hands.

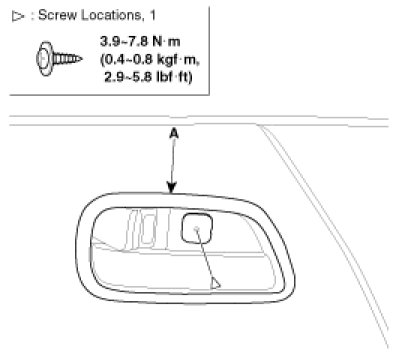

1. After loosen the inside handle cover mounting screw, remove the inside handle cover(A).

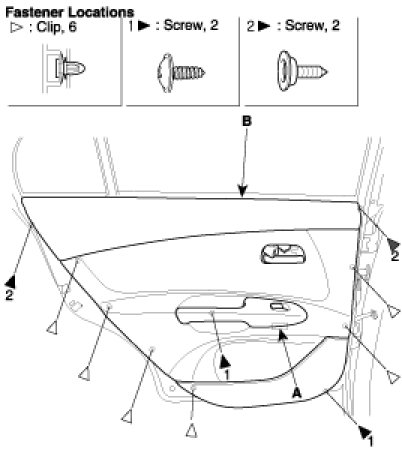

2. Loosen the door trim mounting screws. Disconnect the power window switch connector(A), power mirror connector. Remove the door trim(B).




3. Installation is the reverse of removal.

NOTE:
- Make sure of connectors is plugged in properly and each rod is connected securely.
- Make sure the door lock and opens properly.
