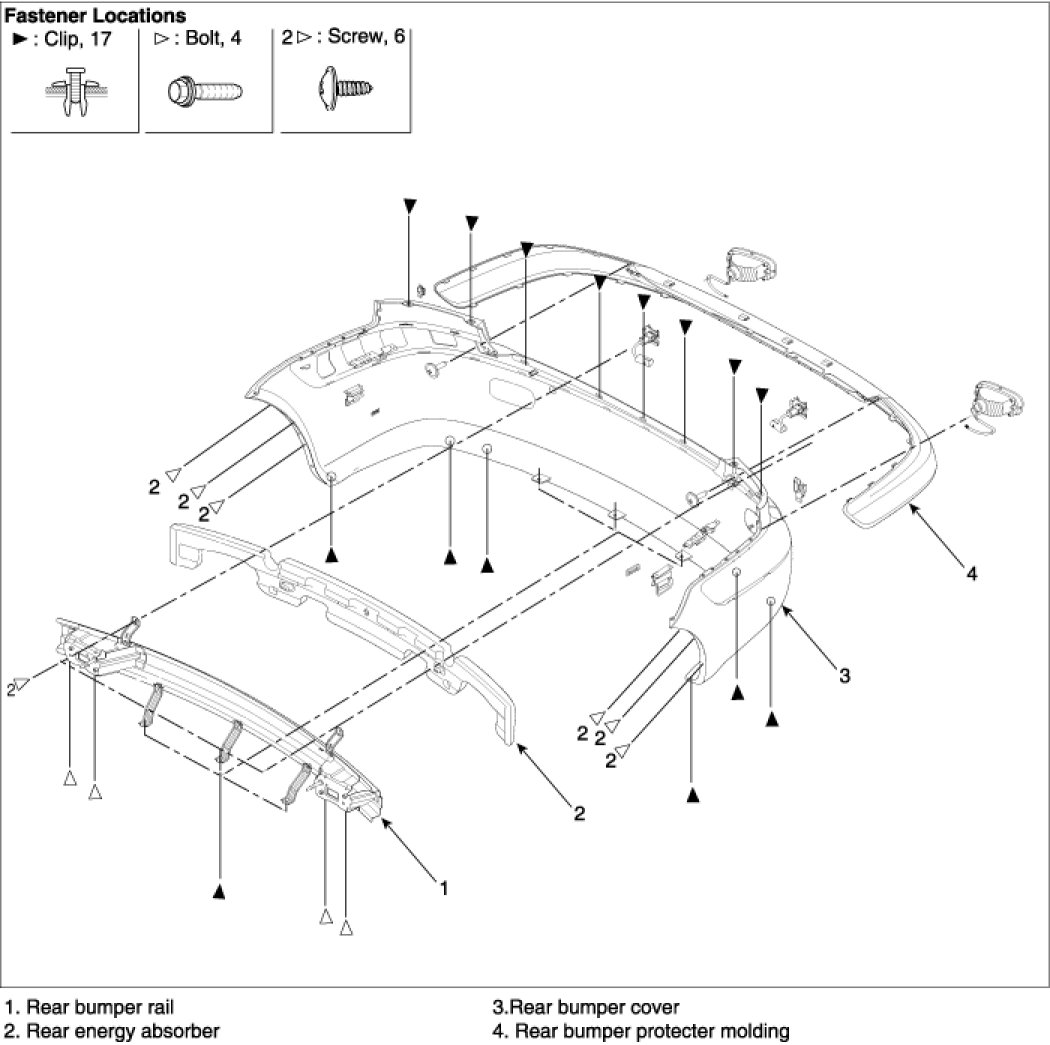

Rear Bumper: Service and Repair










REPLACEMENT

NOTE:
- After remove the rear combinati0n lamp.
- When prying with a flat-tip screwdriver, wrap it with protective tape , and apply protective tape around the related parts your hands.
- Put on gloves to protect your hands.
- Take care not bend or scratch the cover and other parts.
- Replace any damage clips.
