Speakers

Replacement

Front Speaker
1. Remove the front door trim panel .

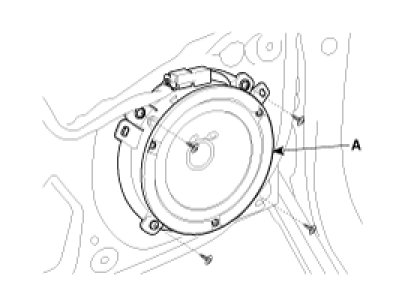

2. Remove the front speaker (A) after removing 4 screws.




3. Installation is the reverse of removal.

Rear Speaker (4 Doors)
1. Remove the rear door trim panel .

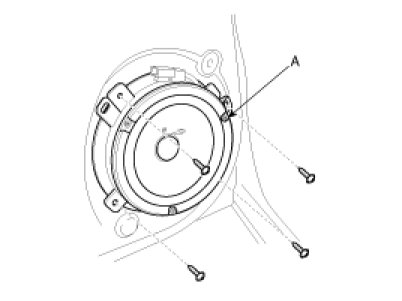

2. Remove the rear speaker (A) after removing 4 screws.




3. Installation is the reverse of removal.

Rear Speaker (5 Doors)
1. Remove the rear seat .
2. Remove the rear package tray .

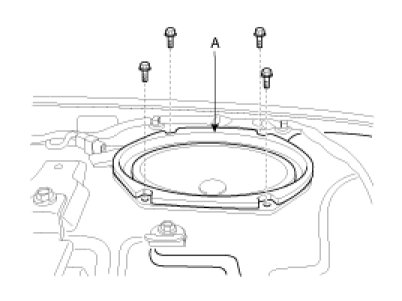

3. Remove the rear speaker (A) after removing 4 bolts.




4. Installation is the reverse of removal.

Tweeter Speaker

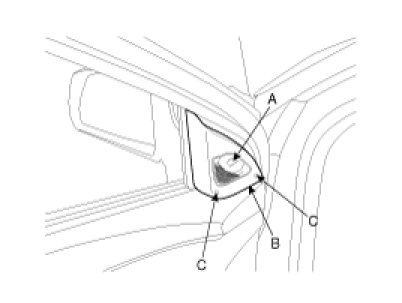

1. Remove the front door quadrant inner cover(B) .
2. Remove the tweeter speaker after disconnecting the connector(A).
Take care of fixing clips(C).




3. Installation is the reverse of removal.
