Front Door Speaker










REPLACEMENT

SPEAKER REPLACEMENT
1. Remove the front door trim.

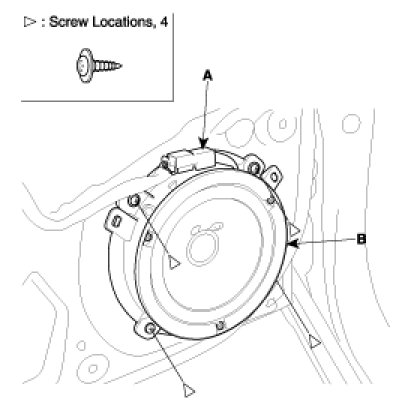

2. After disconnect the speaker mounting screw and connector(A), remove the speaker(B).




3. Installation is the reverse of removal.
