Radio, Stereo, and Compact Disc: Service and Repair

REPLACEMENT

AUDIO ASSEMBLE REPLACEMENT
1. Remove the center facia panel.

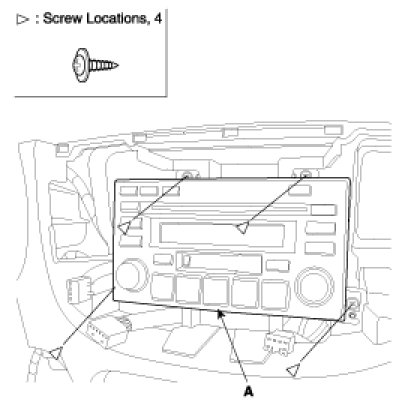

2. Loosen the screws.
3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
