Amplifier: Service and Repair









Replacement

External Amplifier (4 Doors)
1. Remove the right luggage side trim.

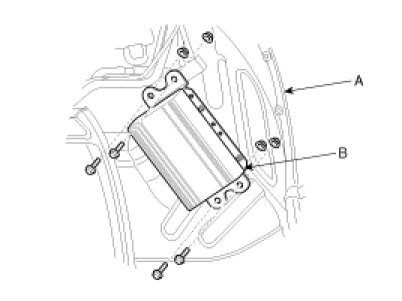

2. Remove the external amplifier (B) from the quarter inner panel (A) after removing 3 nuts.




3. Installation is the reverse of removal.

External Amplifier (5 Doors)
1. Remove the right luggage side trim.

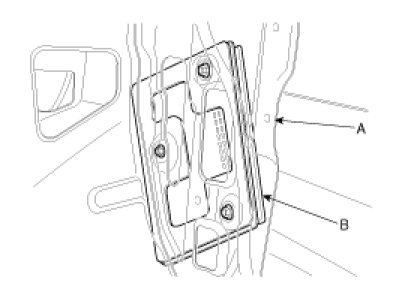

2. Remove the external amplifier (B) from the quarter inner panel (A) after removing 4 bolts.




3. Installation is the reverse of removal.
