Repair Procedures

REPLACEMENT

1. Remove the rear roof trim .

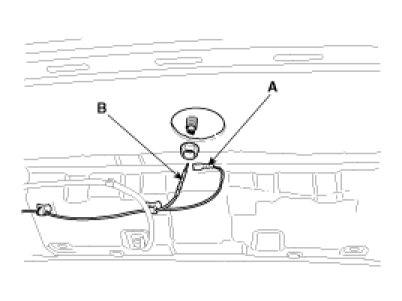

2. Disconnect the 1P connector (A) and antenna jack (B) from the roof antenna.
3. Remove the roof antenna after removing a nut.




4. Installation is the reverse of removal.
