Component Inspection

Component Inspection

1. Check OCV
(1) Connect scantool to Data Link Connector (DLC).
(2) Key "ON".

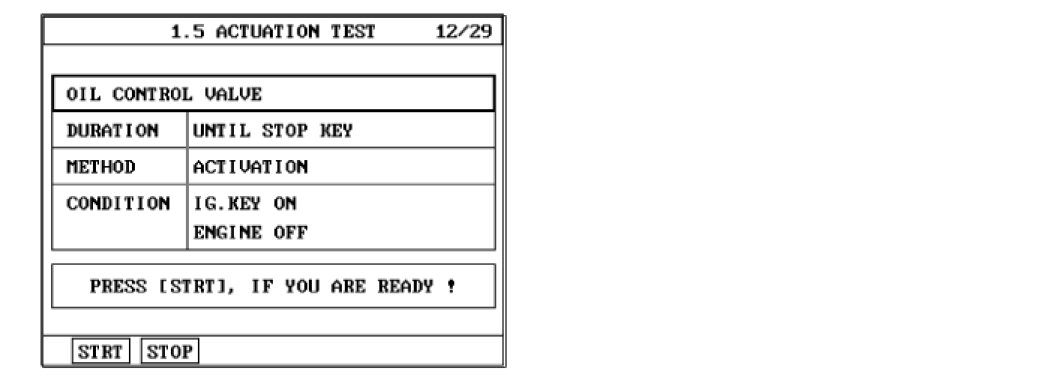

(3) Perform "Actuation Test" for OCV.




(4) Does the OCV work normally (Check clicking sound)?
YES
1) Substitute with a known-good CVVT and check for proper operation. If the problem is corrected, replace CVVT and then go to "Verification of Vehicle Repair" procedure.
NO
1) Substitute with a known-good OCV and check for proper operation. If the problem is corrected, replace OCV and then go to "Verification of Vehicle Repair" procedure.
