Fuel System - Troubleshooting
Fuel System - Troubleshooting

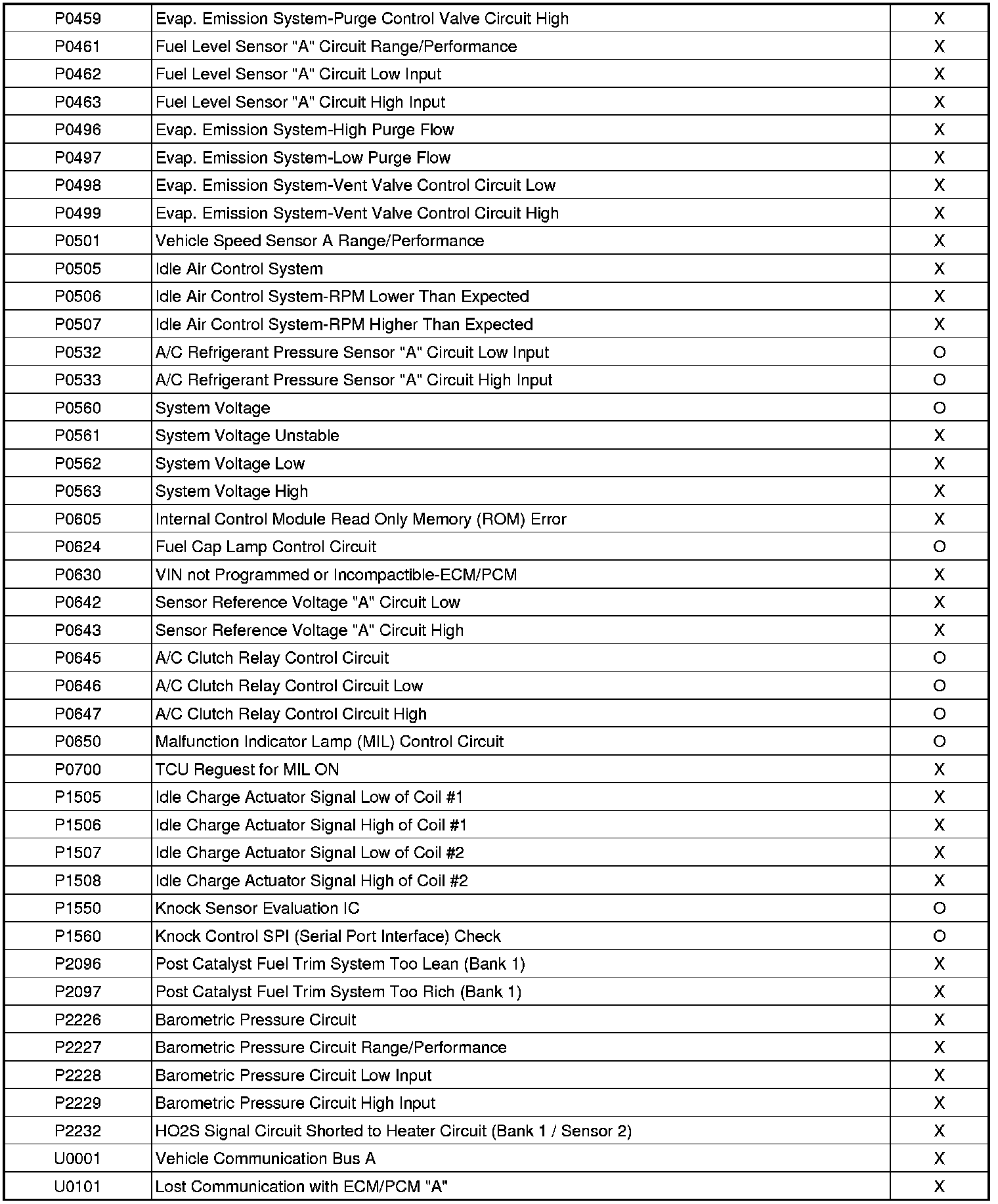

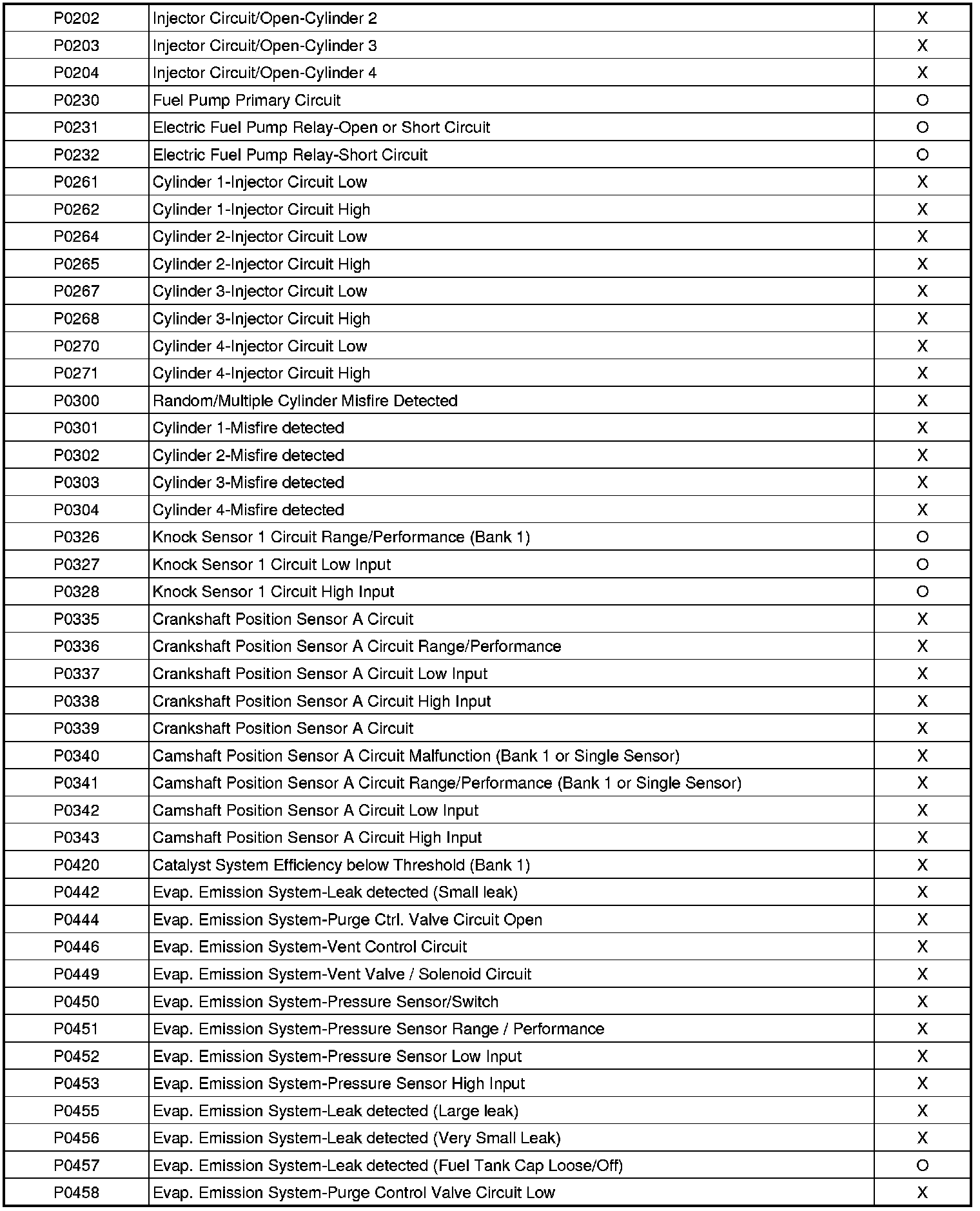

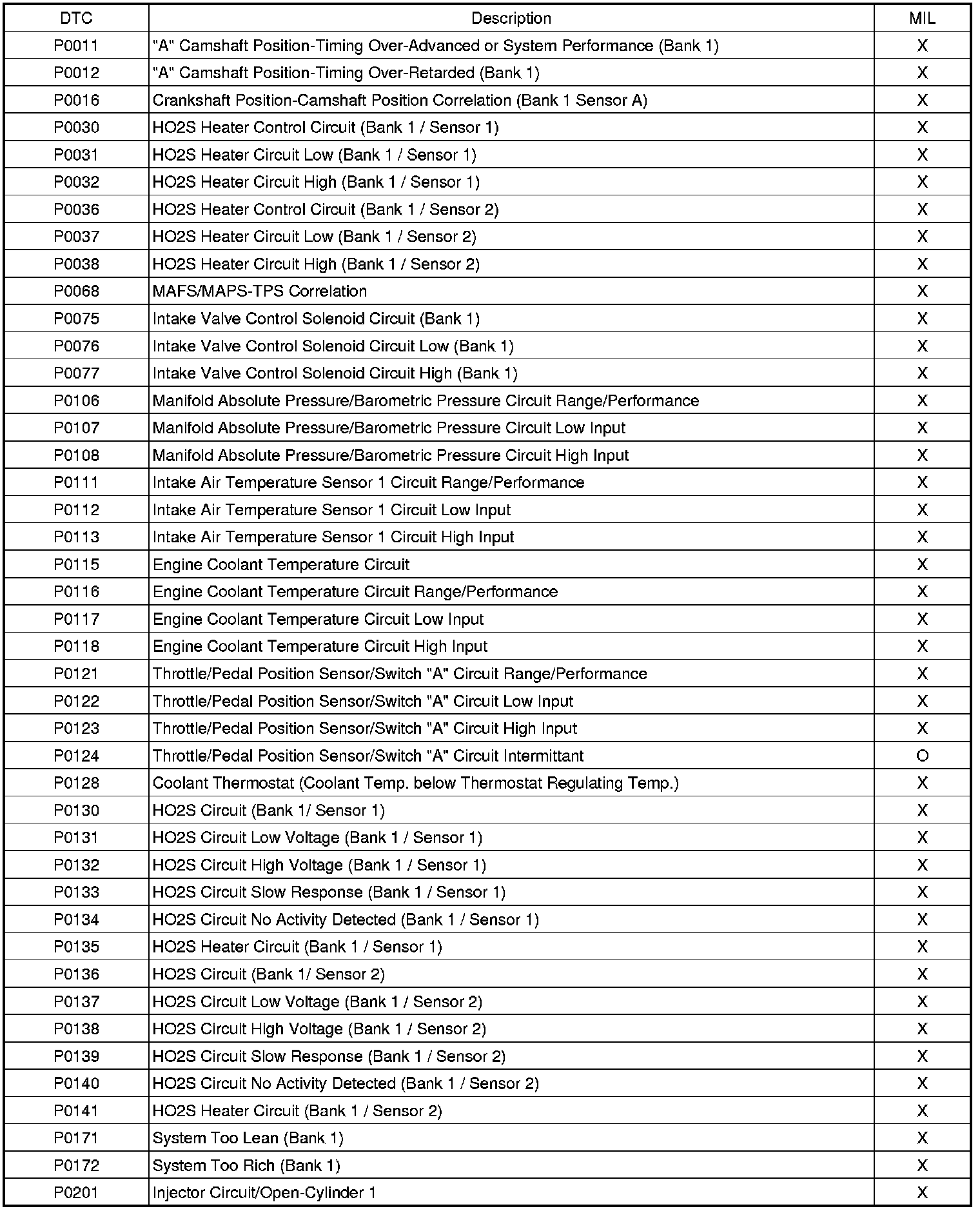

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES (DTC)
NOTE:
X : MIL ON & MEMORY
O : MIL OFF & MEMORY
