Monitor Scantool Data

Monitor Scantool Data

1. Park the vehicle on a level surface.

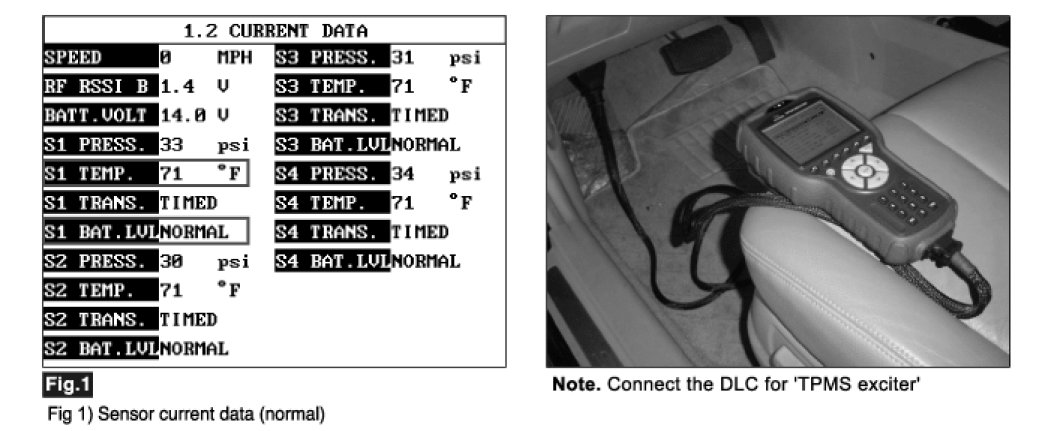

2. Connect 'TPMS exciter' or scantool to Data Link Connector (DLC).
3. Select "TPMS DIAGNOSIS" mode.
4. Select the "FULL" mode of "CURRENT DATA" function.
5. Monitor the parameter of SENSOR 1 on the 'TPMS exciter' or scantool after the vehicle drives 2.5 Mile (4 km) during 12 min.
A. Specification : 'Sensor Temp.' is more than -4°F (-20°C) and 'Sensor battery value' is 'Normal'.




6. Is parameter within specifications?
YES
1) Fault is intermittent. It might have been caused by low temperature.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Go to "Component Inspection" procedure.
