Monitor Scantool Data

Monitor Scantool Data

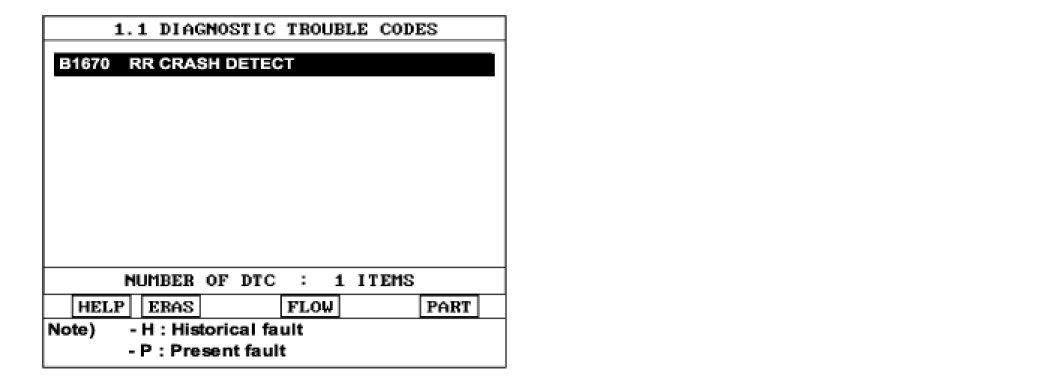

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.




5. Is DTC present problem?
YES
1) Crash recorded Replace SRSCM.
2) Go to "Verification of Vehicle Repair" procedure.
