Fuel Gauge Sender

  1. Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.

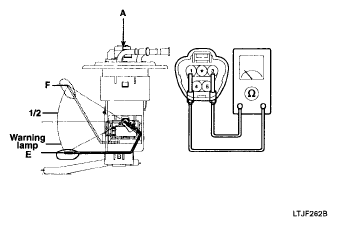

    Fig 1: Measuring Resistance Between Terminals 1 And 3 Of Sender Connector
    G04863624Courtesy of KIA MOTORS AMERICA, INC.
  2. Also check that the resistance changes smoothly when the float is moved from "E" to "F".
    RESISTANCE CHART

    Position Resistance (Ω)
    Sender (E) 184 ± 2
    Warning lamp 170 ± 2
    1/2 66 ± 2
    Sender (F) 15 ± 2
  3. If the height resistance is unsatisfied, replace the fuel sender as an assembly.
    CAUTION: After completing this test, wipe the sender dry and reinstall it in the fuel tank.
