Repair Procedures





REMOVAL

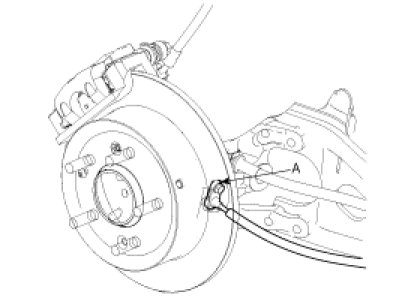

1. Remove the rear wheel speed sensor mounting bolt (A).

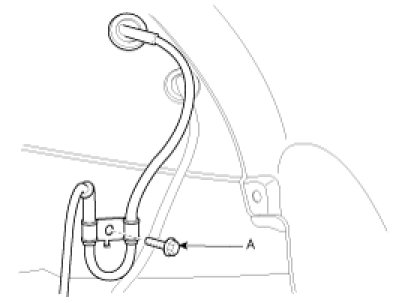

2. Remove the sensor cable bracket mounting bolt (A).




3. Disconnect the rear wheel speed sensor connector.
