Rear Door Lock Switch Inspection





Inspection

Rear Door Lock Switch Inspection
1. Remove the rear door trim.

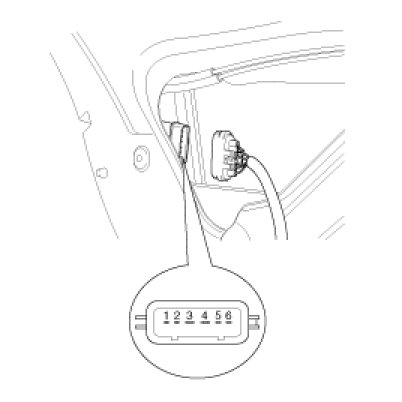

2. Disconnect the 6P connector from the actuator.

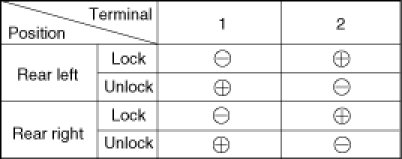

3. Check for continuity between the terminals in each switch position according to the table.
