Multifunction Switch





Inspection

Lighting Switch Inspection
With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

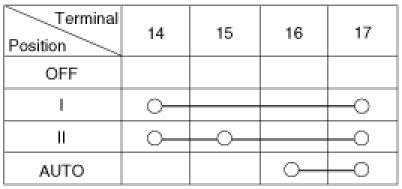

Lighting Switch (Auto Light)

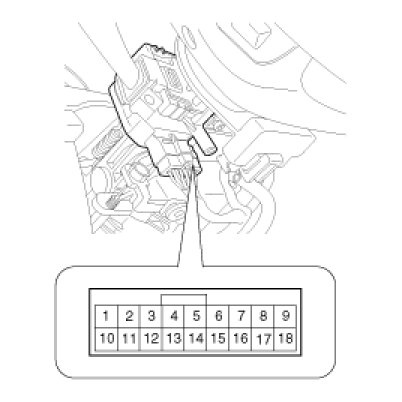

Lighting Switch
