Home >> Kia >> 2009 >> Optima L4-2.4L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Testing and Inspection >> Auto Light Switch

Auto Light Switch





Inspection

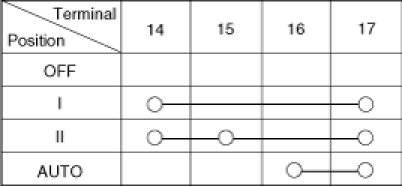

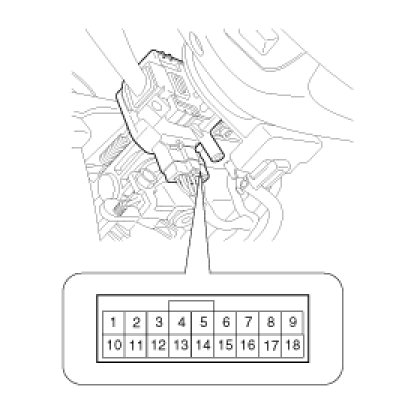

Operate the auto light switch, then check for continuity between terminals of 18P multi-function switch connector.
