Vacuum and Vapor Hose Diagrams
>>
Evaporative Emissions System
Evaporative Emissions System

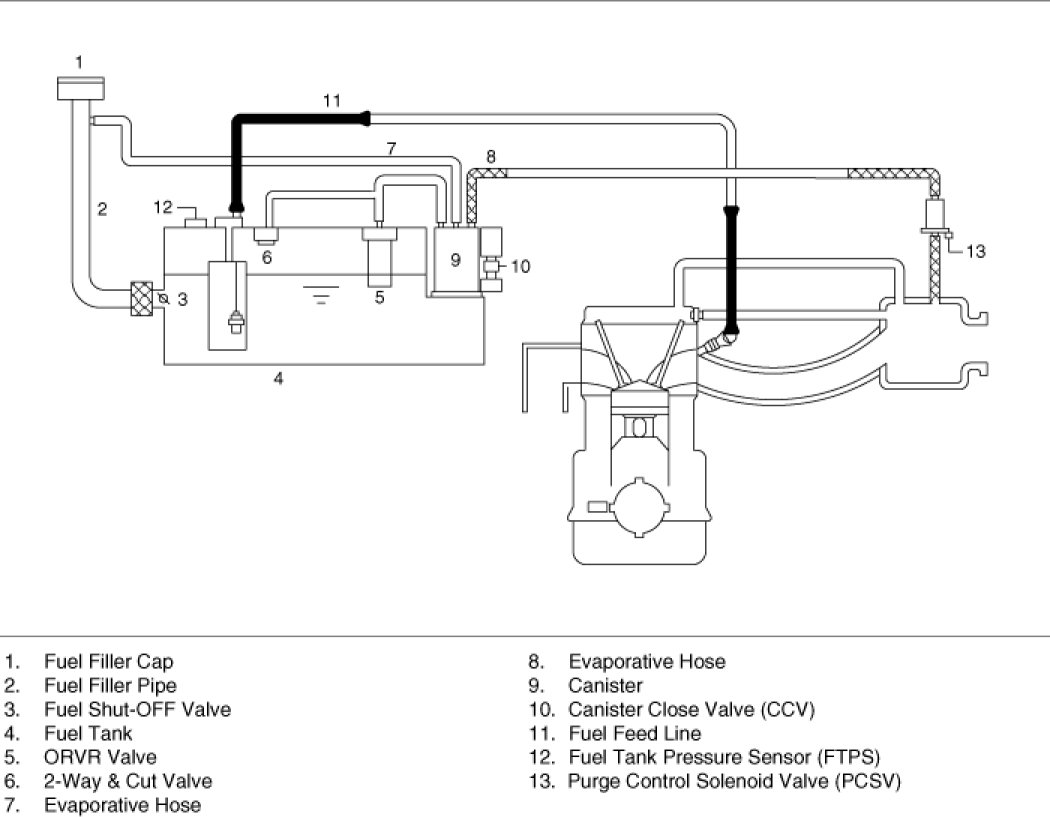

COMPONENTS
Evaporative Emission Control System - Components:

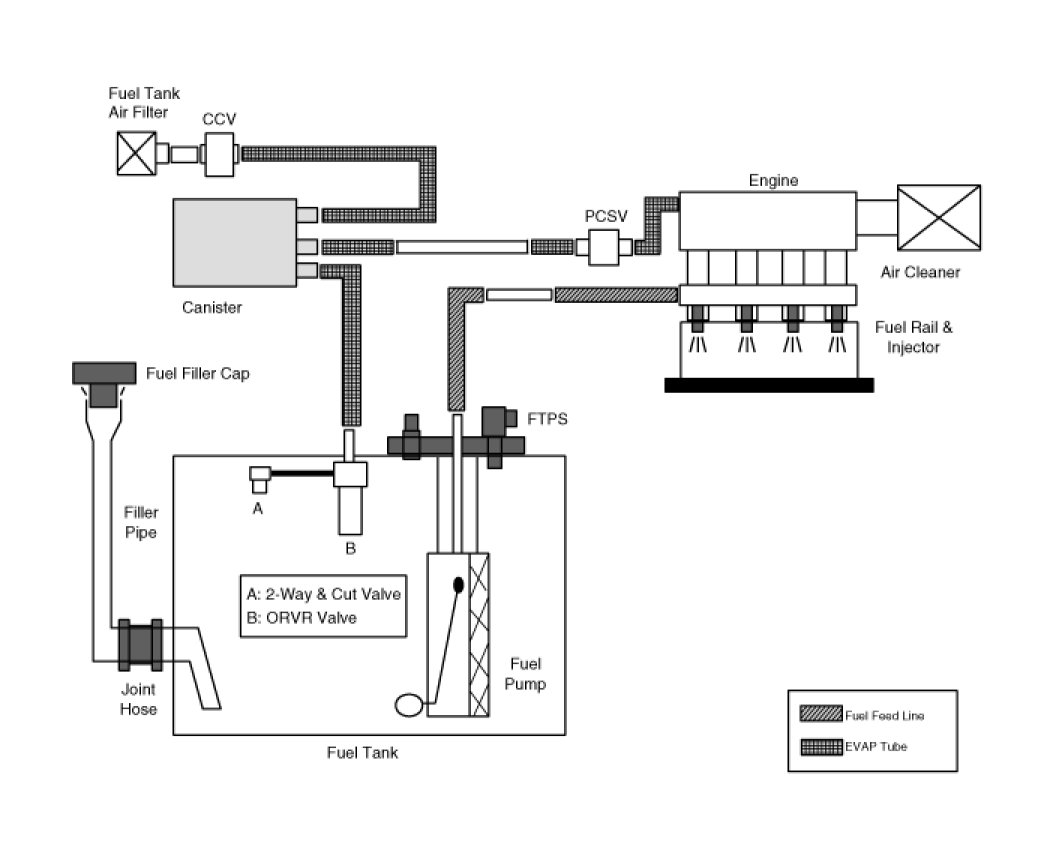

DESCRIPTION
Evaporative Emission Control System - Description:
