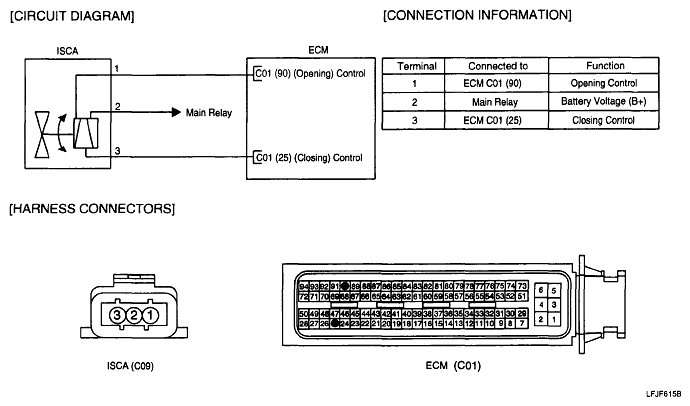

Home >> Kia >> 2008 >> Rio Base, Automatic >> Repair and Diagnosis (Single Page) >> Engine Performance >> Testing & Diagnosis >> DTC Troubleshooting Procedures (2 Of 2) >> DTC P1505 Idle Charge Actuator Signal Low Of Coil #1 >> Schematic Diagram >> (M/T)
