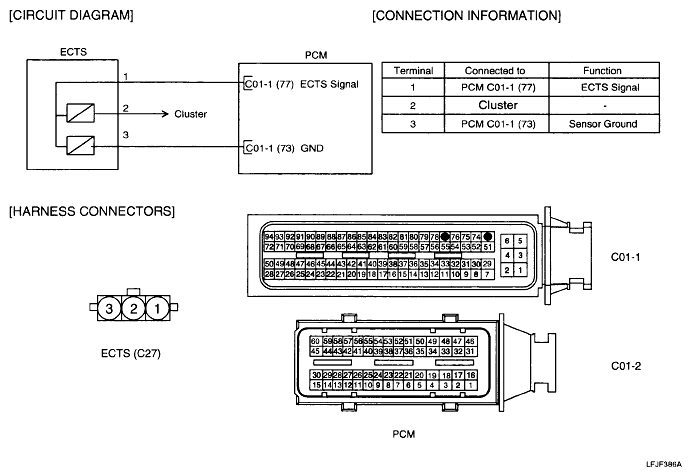

Home >> Kia >> 2008 >> Rio Base, Automatic >> Repair and Diagnosis (Single Page) >> Engine Performance >> Testing & Diagnosis >> DTC Troubleshooting Procedures (1 Of 2) >> DTC P0128 Coolant Thermostat (Coolant Temp. Below Thermostat Regulating Temp.) >> Schematic Diagram >> [At]
