Door Position Adjustment

NOTE:

After installing the door, check for a flush fit with the Body, then check for equal gaps between the front, Rear, and bottom, door edges and the body. Check that the door and body edges are parallel. Before Adjusting, replace the mounting bolts.

Place the vehicle on a firm, level surface when adjusting the doors.

Fig 1: Identifying Door And Body Edges
Courtesy of KIA MOTORS AMERICA, INC.
Adjust at the hinges (A):
- Loosen the door mounting bolts (B) slightly, and move the door IN or OUT until it aligns flush with the body.)
- Loosen the hinge mounting bolts (C) slightly, and move the door BACKWARD or FORWARD, UP or DOWN as necessary to equalize the gaps.
- Place a shop towel (D) on the jack (E) to prevent damage to the door when adjusting the door.

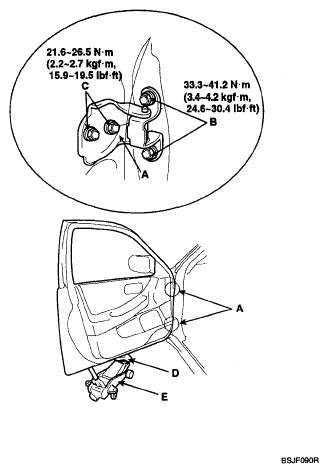

  Fig 2: Door Mounting Bolts, Hinge Mounting Bolts, Shop Towel And Jack With Torque Specifications
  Courtesy of KIA MOTORS AMERICA, INC.
Check that the door and body edges are parallel.
Grease the pivot portions of the hinges indicated by the arrows.
Check for water leaks.
