Rear Seat Belt Replacement

CAUTION:
  • When Installing the belt, make sure not to damage the pretensioner.
  1. Remove the following items first.
  2. Remove the lower anchor (A).
  3. Remove the package tray trim. See PACKAGE TRAY .
  4. After loosening the retractor (B) mounting bolt, remove the rear seat belt (C).

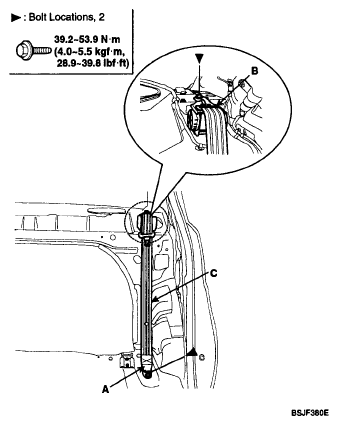

    Fig 1: Retractor, Mounting Bolt And Rear Seat Belt With Torque Specifications
    G04863457Courtesy of KIA MOTORS AMERICA, INC.
