Head Lamp And Fog Lamp Aiming Point

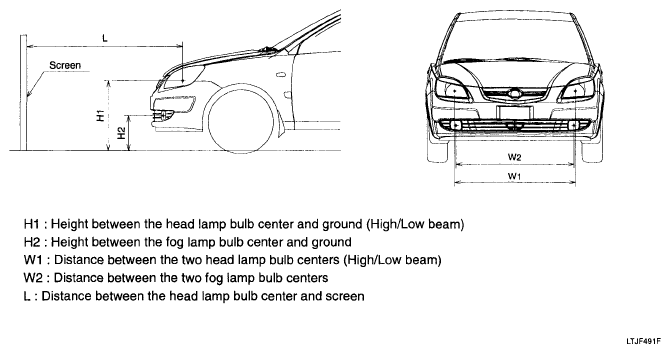

Fig 1: Identifying Head Lamp And Fog Lamp Aiming Point
G04863750Courtesy of KIA MOTORS AMERICA, INC.
VEHICLE CONDITION CHART

Unit: in(mm)
Vehicle condition H1 H2 0 W2 L
Without driver 26.3(669) 13.3(337) 45.1(1,146) 44.1(1,120) 118.1(3,000)
With driver 26.1(664) 13.0(332)
  1. Turn the low beam on without driver aboard.

    The cut-off line should be projected in the allowable range (shaded region).

    Fig 2: Identifying Head Lamp And Fog Lamp Aiming Point
    G04863751Courtesy of KIA MOTORS AMERICA, INC.
  2. Turn the front fog lamp on without the driver aboard.

    The cut-off line should be projected in the allowable range (shaded region).

    Fig 3: Identifying Head Lamp And Fog Lamp Aiming Point
    G04863752Courtesy of KIA MOTORS AMERICA, INC.
