Rear Door Limiter: Service and Repair

DOOR CHECKER REPLACEMENT
1. Remove the front door trim.

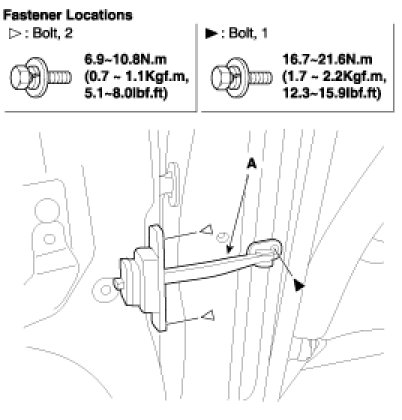

2. Loosen the mounting bolts, then remove the rear checker (A).




3. Installation is the reverse the removal.
