Windshield Washer Switch: Testing and Inspection

INSPECTION

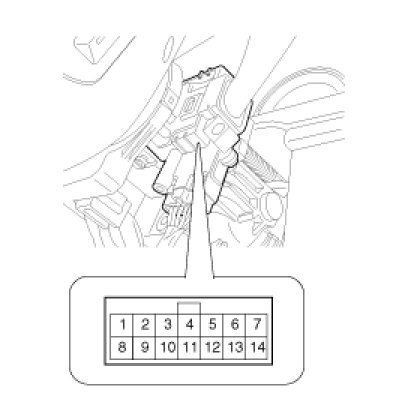

Check for continuity between the terminals while operating the wiper and washer switch. If normal condition is not indicated, replace wiper and wiper switch.

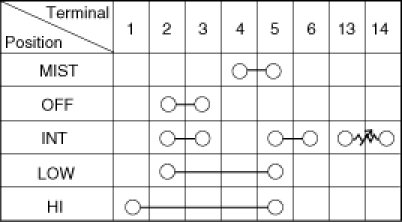

WIPER SWITCH





WASHER SWITCH
