Windshield Deicer Switch

INSPECTION

1. Disconnect the negative (-) battery terminal.

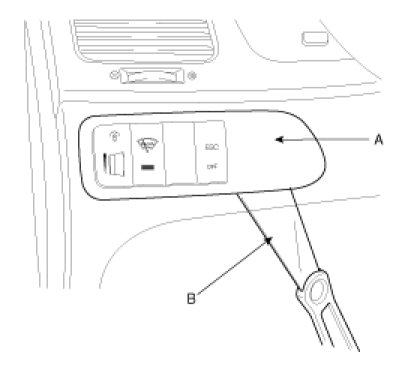

2. Remove the power crash pad switch (A) from the side crash pad cover by using the scraper (B) and then disconnect the connectors.

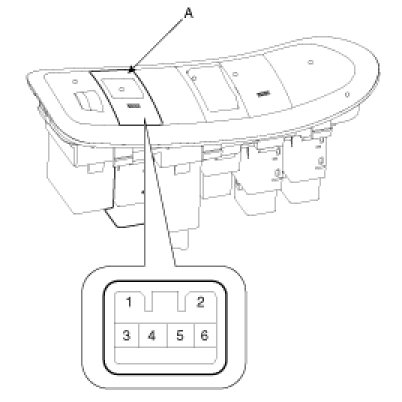

3. Remove the windshield deicer switch (A) from lower crash pad switch.

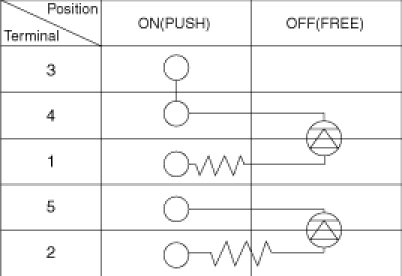

4. Using an ohmmeter, inspection the continuity between the terminals after removing to the switch connector.
