Lateral Accelerometer: Description and Operation

DESCRIPTION

1. The yaw-rate & lateral G sensor is applied for the ESC system.
2. The yaw-rate is the angular velocity, when a vehicle turns a corner, and the lateral G is side-to-side acceleration.
3. The sensor assembly is located under the center console, behind the shift lever.





specifications

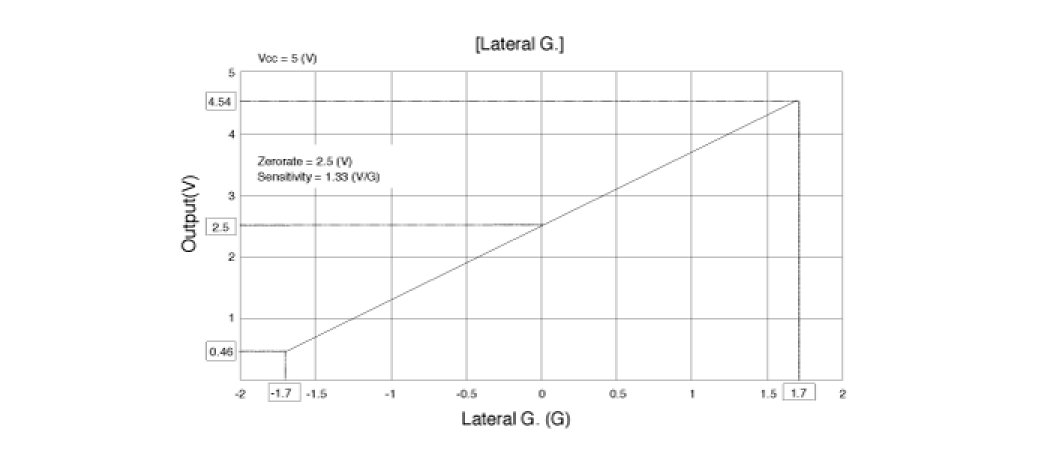

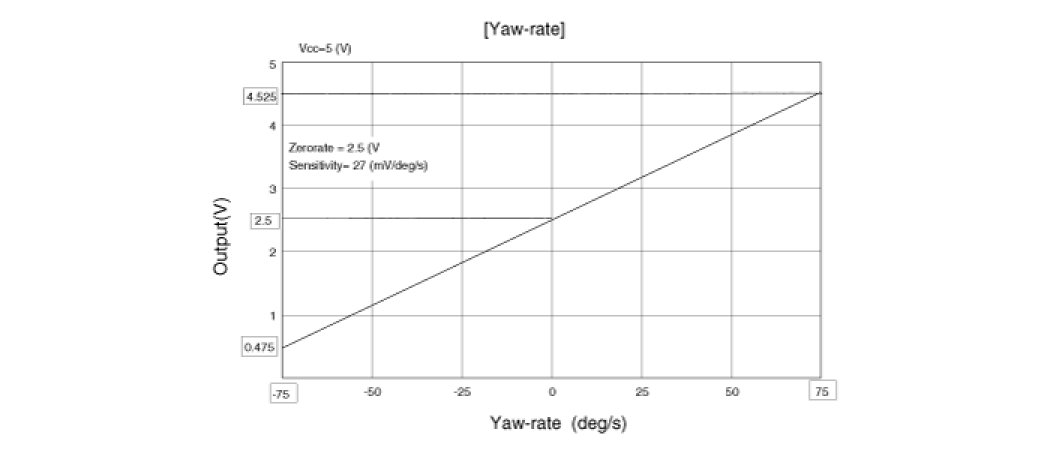

output characteristic

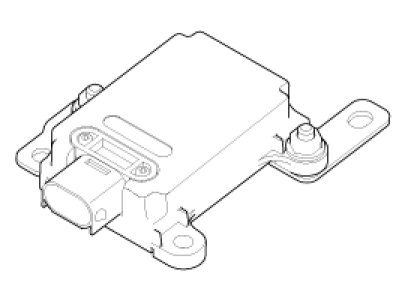

external diagram
