Headlamp Switch: Testing and Inspection





INSPECTION

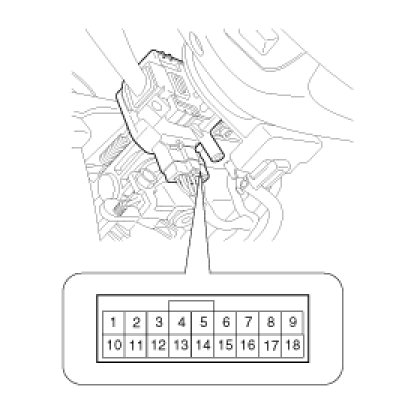

Operate the auto light switch, then check for continuity between terminals of 18P multi-function switch connector.

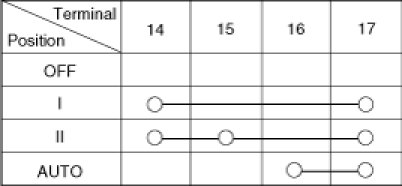

LIGHTING SWITCH (AUTO LIGHT)





LIGHTING SWITCH
