Seat Position Sensor: Description and Operation

DESCRIPTION

The STPS output signal is altered by the proximity of a separate ferro-magnetic shunt, which is linked via the seat track. The logic signal produced is the result of the proximity device being activated (no shunt present) or deactivated (shunt present).

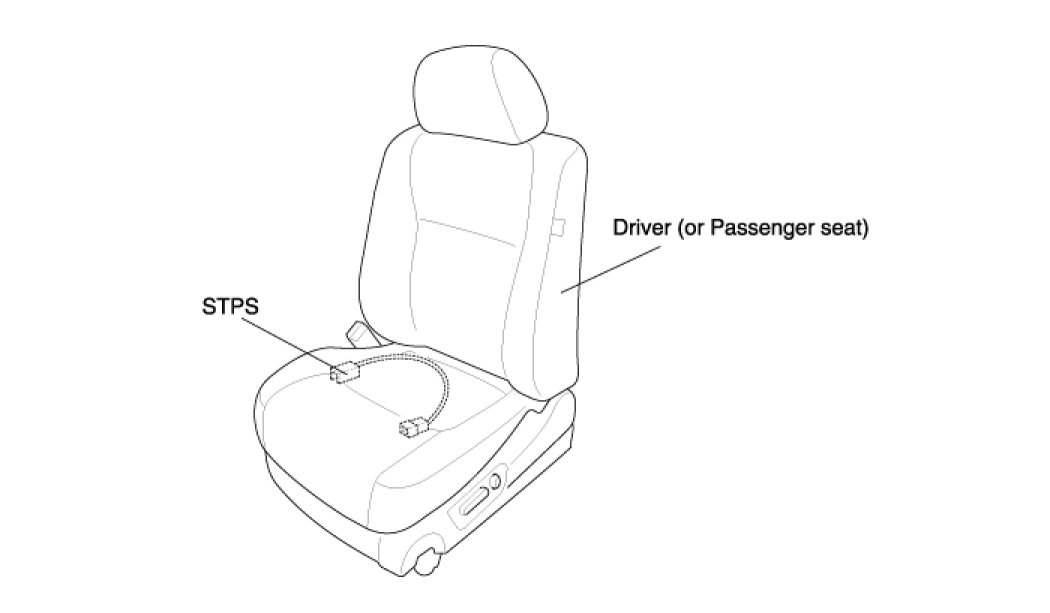

COMPONENTS

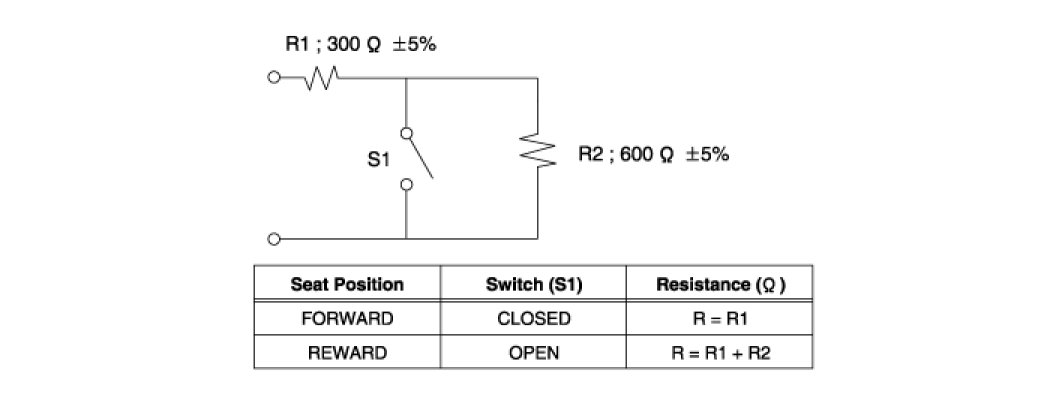

CIRCUIT DIAGRAM AND SPECIFICATION
