Parking Brake Switch

The parking brake switch is a push type. It is located at the side of the parking brake pedal.

1. Check that there is continuity between the terminal and switch body with the switch (A) ON.
2. Check that there is no continuity between the terminal and switch body with the switch OFF.

If continuity is not as specified, replace the switch or inspect its ground connection.

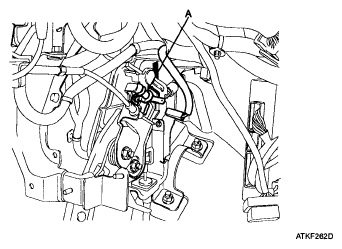

Fig 1: Identifying Parking Brake Switch

Courtesy of KIA MOTORS AMERICA, INC.
