Fuel Gauge Sender

Using an ohmmeter, measure the resistance between terminals 1 and 2 of sender connector (A) at each float level.

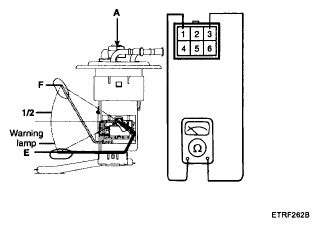

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Sender Connector
Courtesy of KIA MOTORS AMERICA, INC.

Also check that the resistance changes smoothly when the float is moved from "E" to "F".

TERMINALS RESISTANCE CHART

Position	Resistance (Ω)
Sender (E)	200
Warning lamp	160
1/2	54.5
Sender (F)	8

CAUTION: If the height resistance Is not within specifications, replace the fuel sender as an assembly.
After completing this test, wipe the sender dry and reinstall it in the fuel tank.
