Camshaft Bearing: Specifications

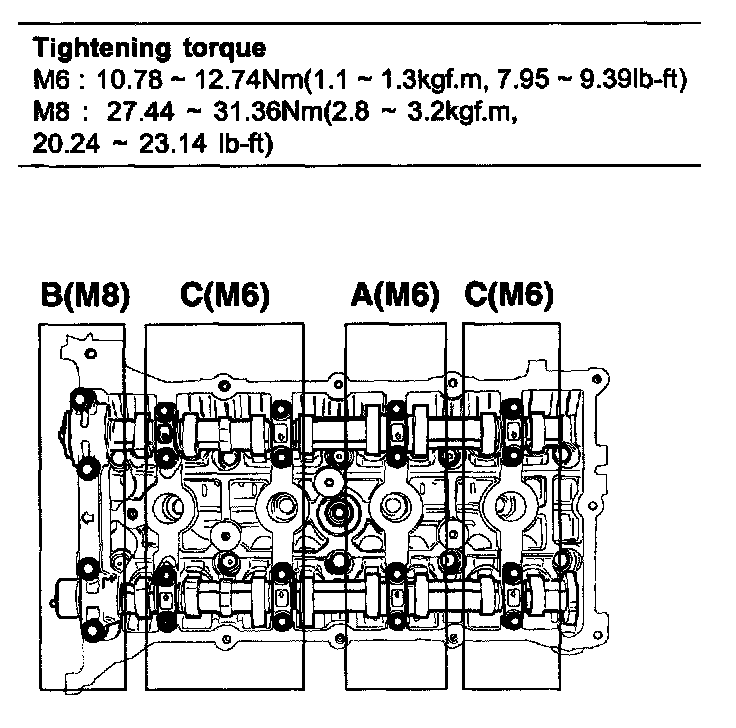

Camshaft Bearing Cap





Tightening order.
Group A -> Group B -> Group C.
