Evaporative and ORVR Emission Control System

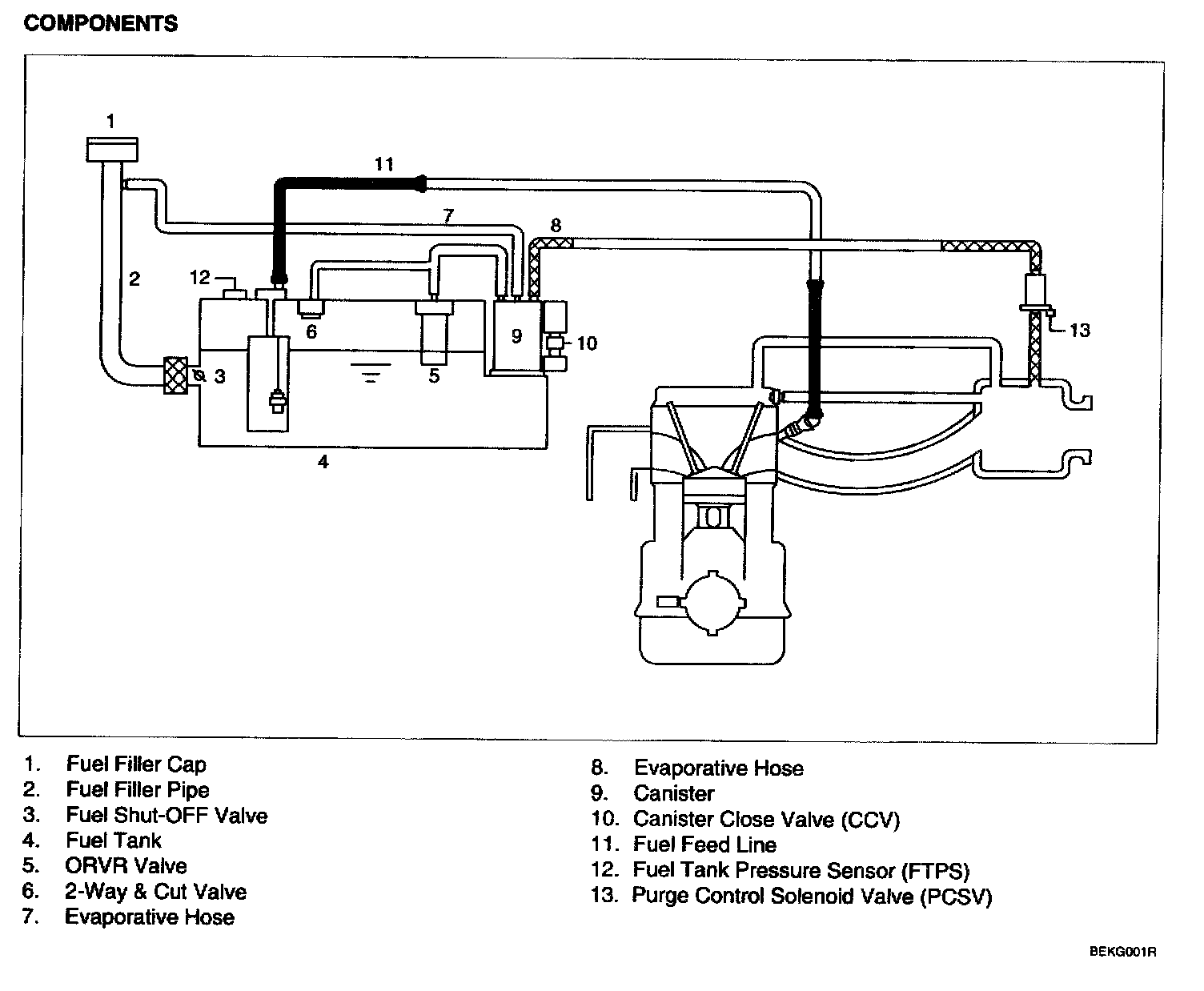

Evaporative and ORVR Emission Control System Components:
