Headlamp Switch: Service and Repair




INSPECTION

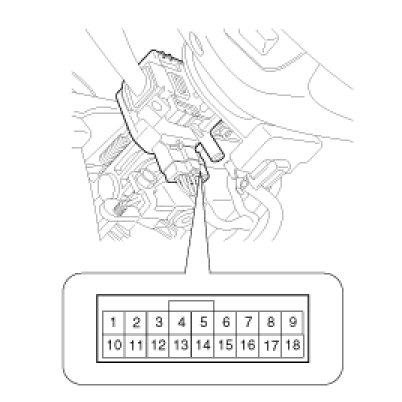

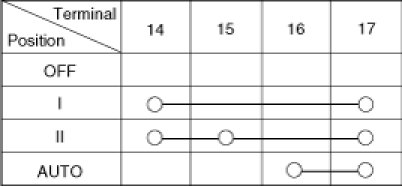

Operate the auto light switch, then check for continuity between terminals of 18P multi-function switch connector.
