Main Fuel Gauge Sender

  1. Using an ohmmeter, measure the resistance between terminals 1 and 2 of sender connector (A) at each float level.

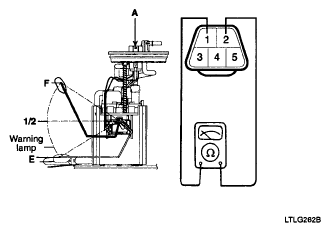

    Fig 1: Measuring Resistance Between Terminals Of Sender Connector
    G04806434Courtesy of KIA MOTORS AMERICA, INC.
  2. Also check that the resistance changes smoothly when the float is moved from "E" to "F"
    RESISTANCE CHART

    Position Resistance (Ω)
    Sender (E) 200 +/- 2
    Warning lamp 174.4 +/- 1.7
    1/2 98.4 +/- 1
    Sender (F) 8.0 +/- 1
  3. If the height resistance is unsatisfied, replace the fuel sender as an assembly.
    CAUTION: After completing this test, wipe the sender dry and reinstall it in the fuel tank.
