Brake Fluid Level Warning Switch

  1. Remove the connector (A) from the switch located at the brake fluid reservoir (B).
  2. Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with a rod.

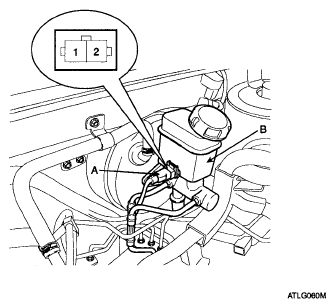

    Fig 1: Identifying Brake Fluid Level Warning Switch Connector Terminals
    G04806439Courtesy of KIA MOTORS AMERICA, INC.
