Rear

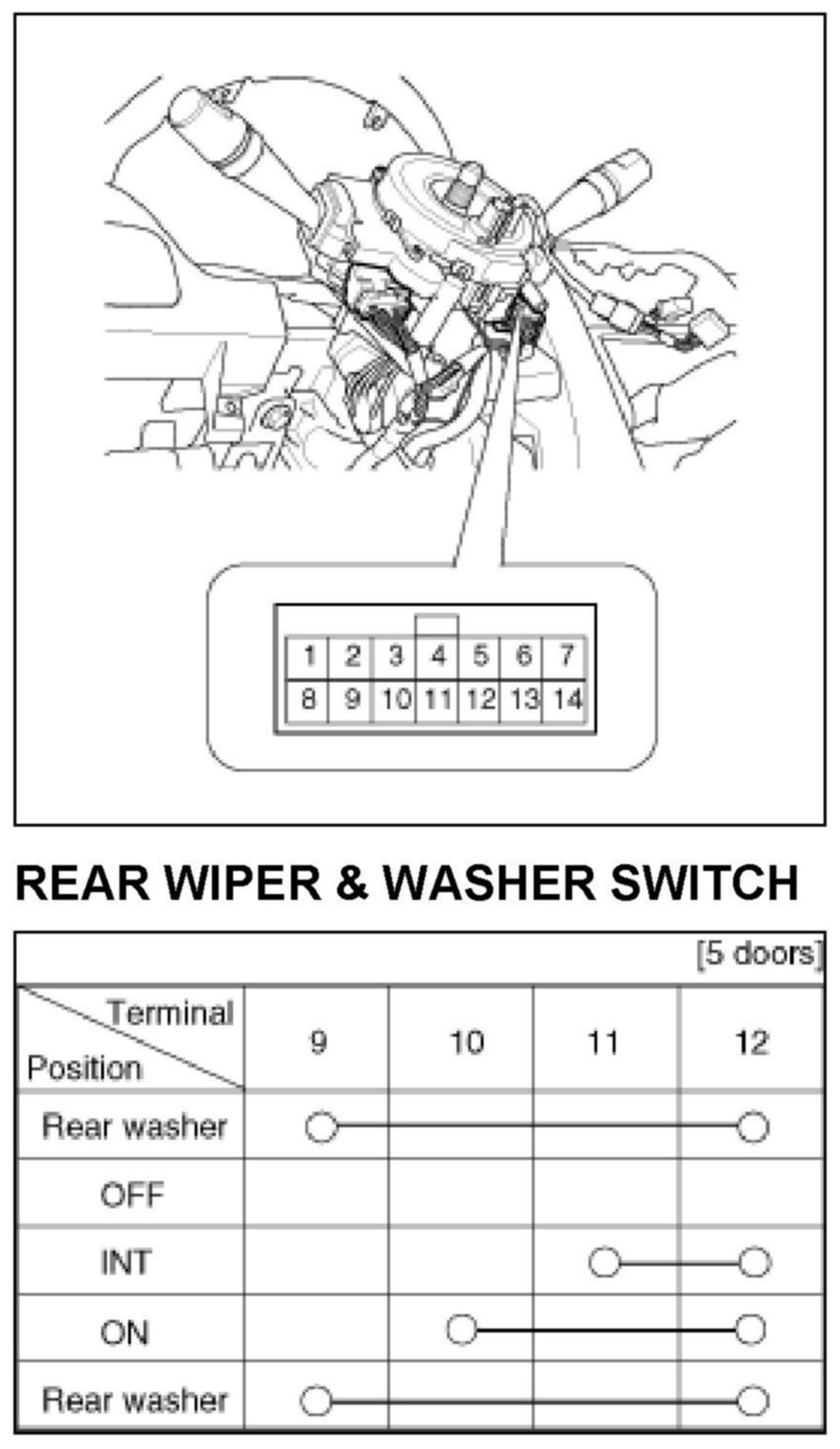

Rear Washer Switch




INSPECTION
With the rear wiper & washer switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multifunction switch.
